McWel Generator

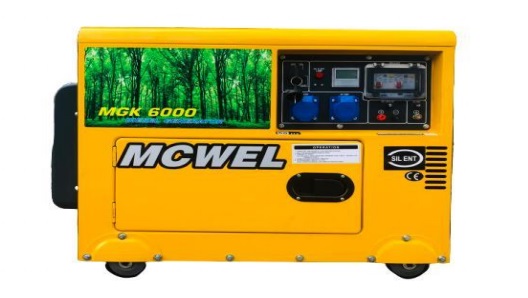

McWel MGK6000
Rated Output
5.7 kW / 7.125 kVA (50Hz)
Voltage
230V
Engine Model
KA186FAG
Dimension (L x W x H)
910mm x 530mm x 740mm
Operating Weight
175 kg

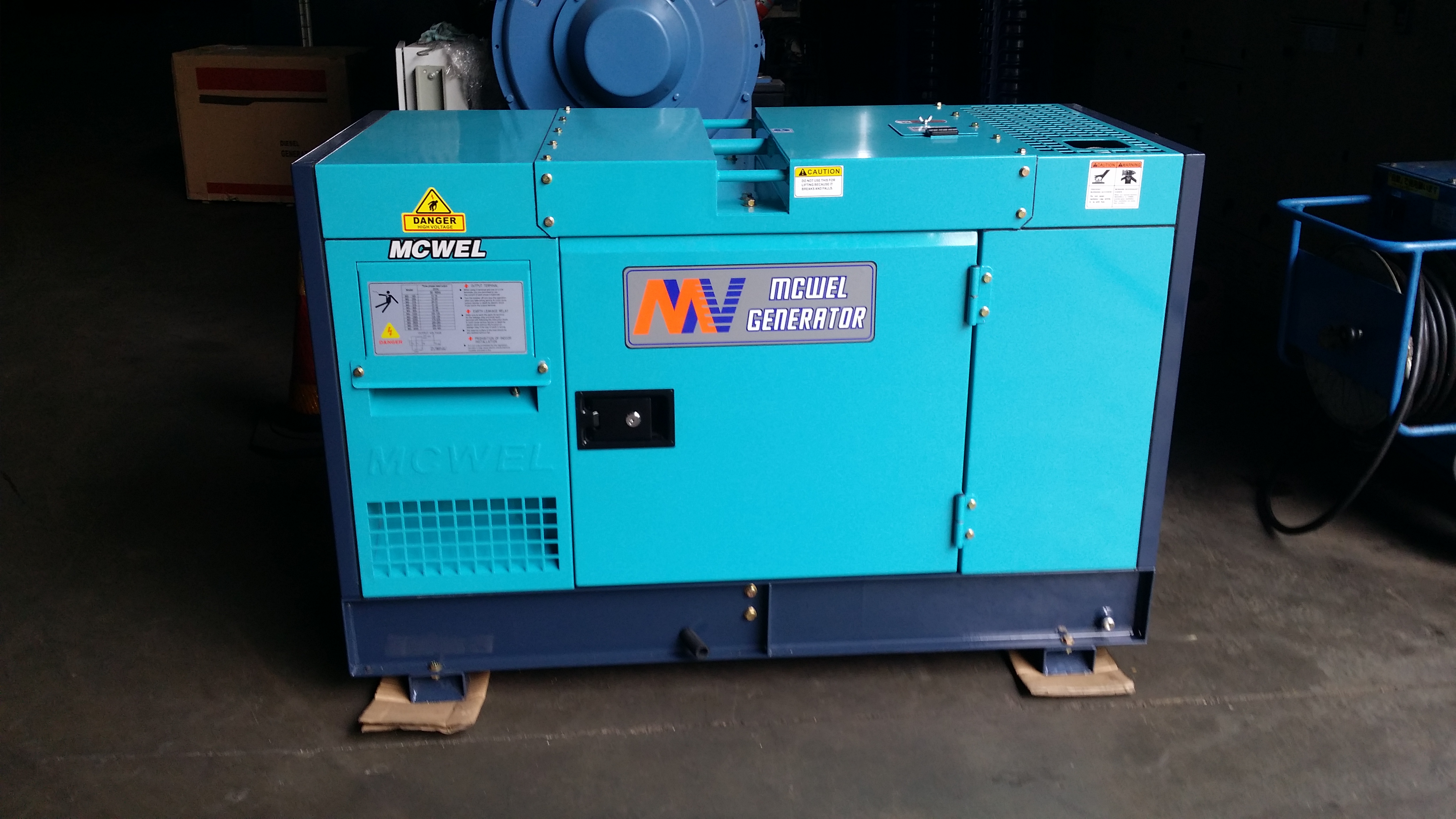

McWel MGY16S
Rated Output
10.8 kW / 13.5 kVA (50Hz)
13.5 kW / 16.8 kVA (60Hz)
Voltage
400V / 440V, 200V / 220V
Engine Model
3TNV88-GGE
Fuel Consumption
2.2 ℓ/h (75%)
1.4 ℓ/h (50%)
Fuel Tank Capacity
41 ℓ
Dimension (L x W x H)
1490mm x 700mm x 930mm
Operating Weight
560 kg

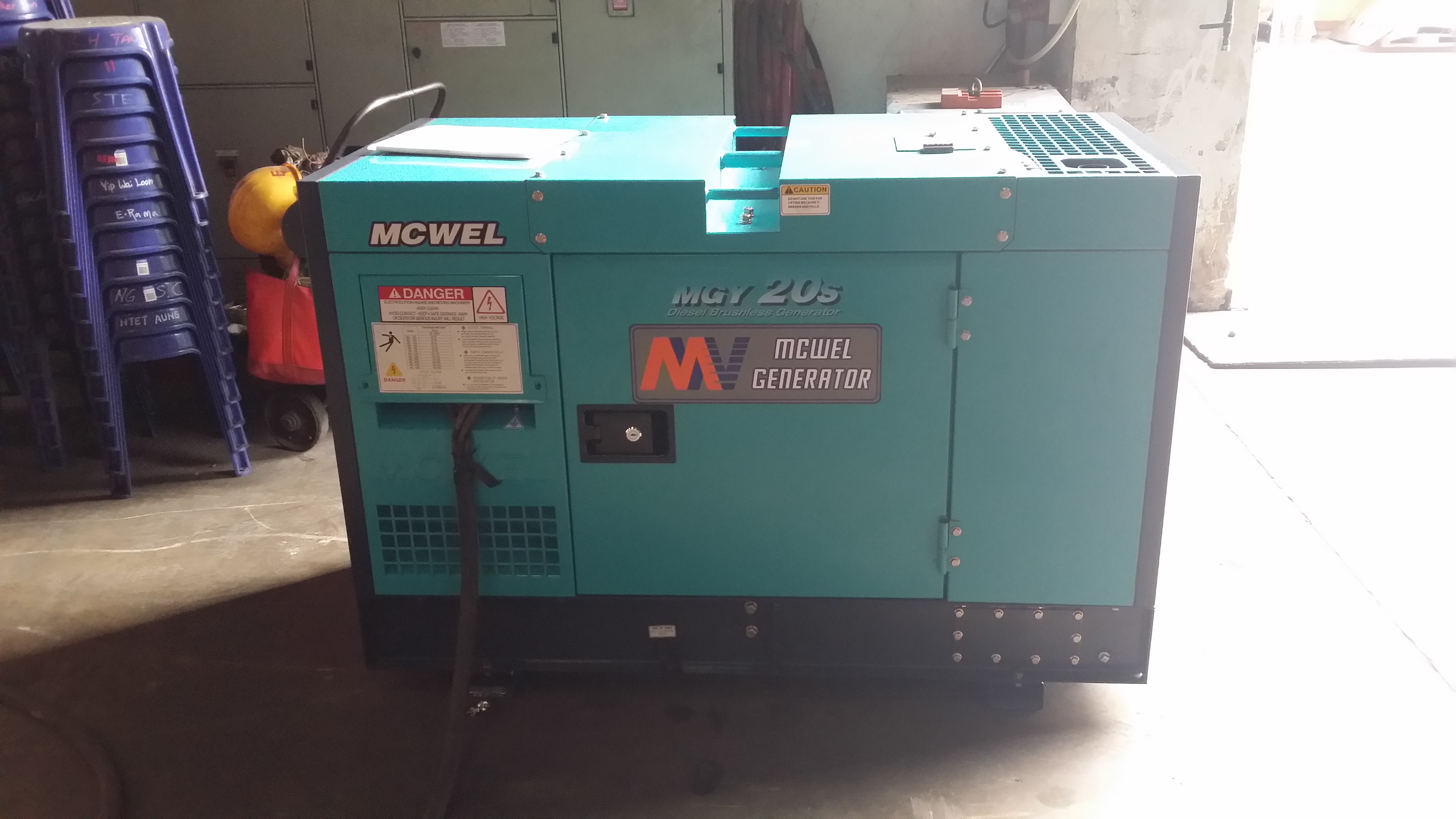

McWel MGY20S
Rated Output
12.8 kW / 16 kVA (50Hz)
16 kW / 20 kVA (60Hz)
Voltage
400V / 440V, 200V / 220V
Engine Model
4TNV88-GGE
Fuel Consumption
2.3 ℓ/h (75%)
1.5 ℓ/h (50%)
Fuel Tank Capacity
41 ℓ
Dimension (L x W x H)
1490mm x 700mm x 930mm
Operating Weight
680 kg
McWel MGY25S
Rated Output
16 kW / 20 kVA (50Hz)
20 kW / 25 kVA (60Hz)
Voltage
400V / 440V, 200V / 220V
Engine Model
4TNV88-GLE
Fuel Consumption
3.4 ℓ/h (75%)
2.1 ℓ/h (50%)
Fuel Tank Capacity
45 ℓ
Dimension (L x W x H)
1600mm x 700mm x 960mm
Operating Weight
680 kg

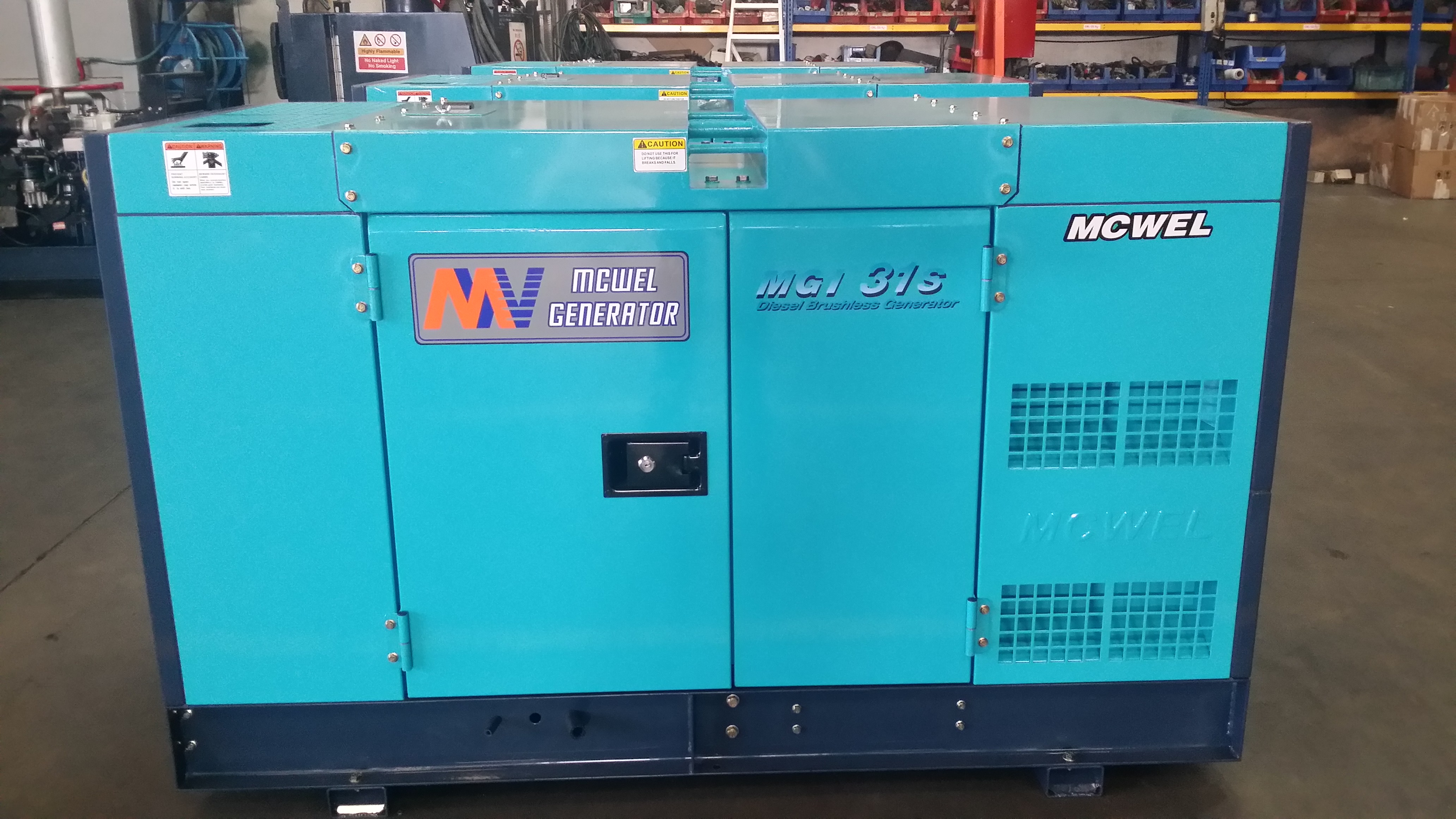

McWel MGI31S
Rated Output
20 kW / 25 kVA (50Hz)
26 kW / 32.5 kVA (60Hz)
Voltage
400V / 440V, 200V / 220V
Engine Model
4JB1-493
Fuel Consumption
4.8 ℓ/h (75%)
4.0 ℓ/h (50%)
Fuel Tank Capacity
63 ℓ
Dimension (L x W x H)
1850mm x 850mm x 1100mm
Operating Weight
800 kg

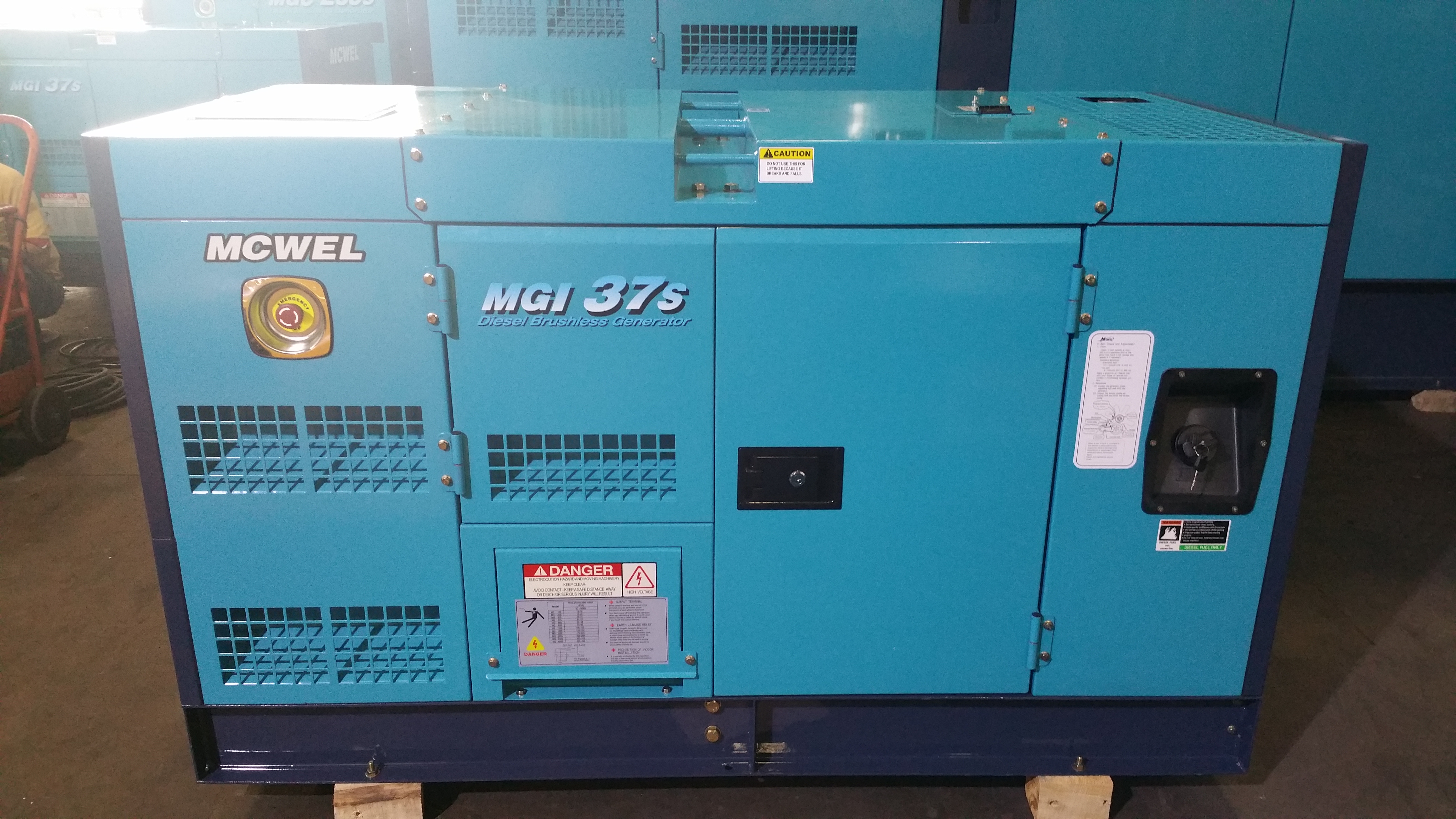

McWel MGI37S
Rated Output
25 kW / 31.3 kVA (50Hz)
30kW / 37.5 kVA (60Hz)
Voltage
400V / 440V, 200V / 220V
Engine Model
4JB1T-493
Fuel Consumption
5.5 ℓ/h (75%)
4.8 ℓ/h (50%)
Fuel Tank Capacity
63 ℓ
Dimension (L x W x H)
1850mm x 850mm x 1000mm
Operating Weight
800 kg
McWel MGI45S
Rated Output
30 kW / 37 kVA
Voltage
400V / 440V, 200V / 220V
Engine Model
4JB1TA
Fuel Consumption
7.06 ℓ/h (75%)
4.7 ℓ/h (50%)
Fuel Tank Capacity
80 ℓ
Dimension (L x W x H)
2000mm x 850mm x 1050mm
Operating Weight
1100 kg

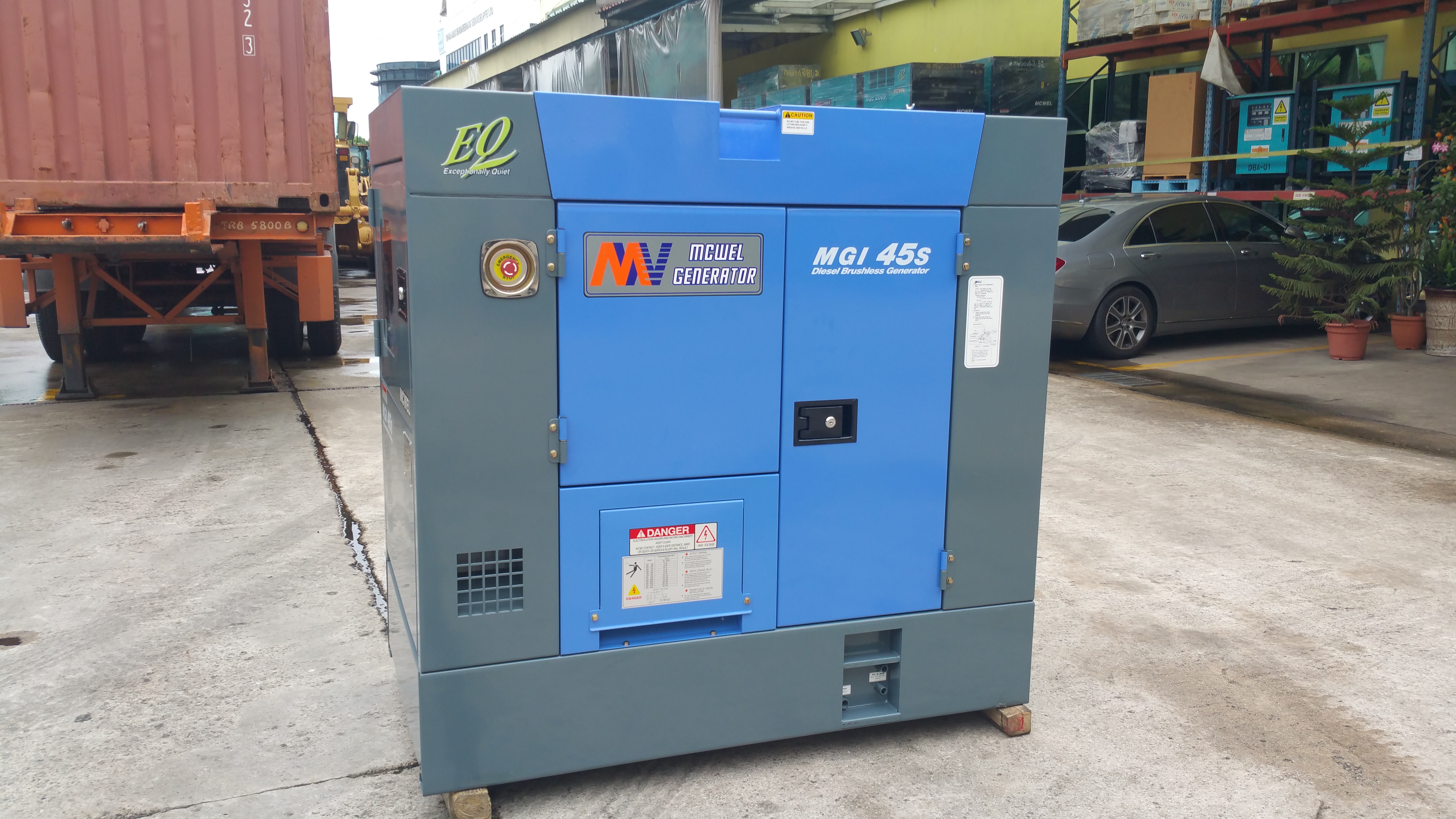

McWel MGI45S-LN
Rated Output
30 kW / 37 kVA
Voltage
400V / 440V, 200V / 220V
Engine Model
4JB1TA
Fuel Consumption
7.06 ℓ/h (75%)
4.7 ℓ/h (50%)
Fuel Tank Capacity
80 ℓ
Dimension (L x W x H)
2150mm x 950mm x 1200mm
Operating Weight
1100 kg
