Air Breaker | JPN

Air Breaker

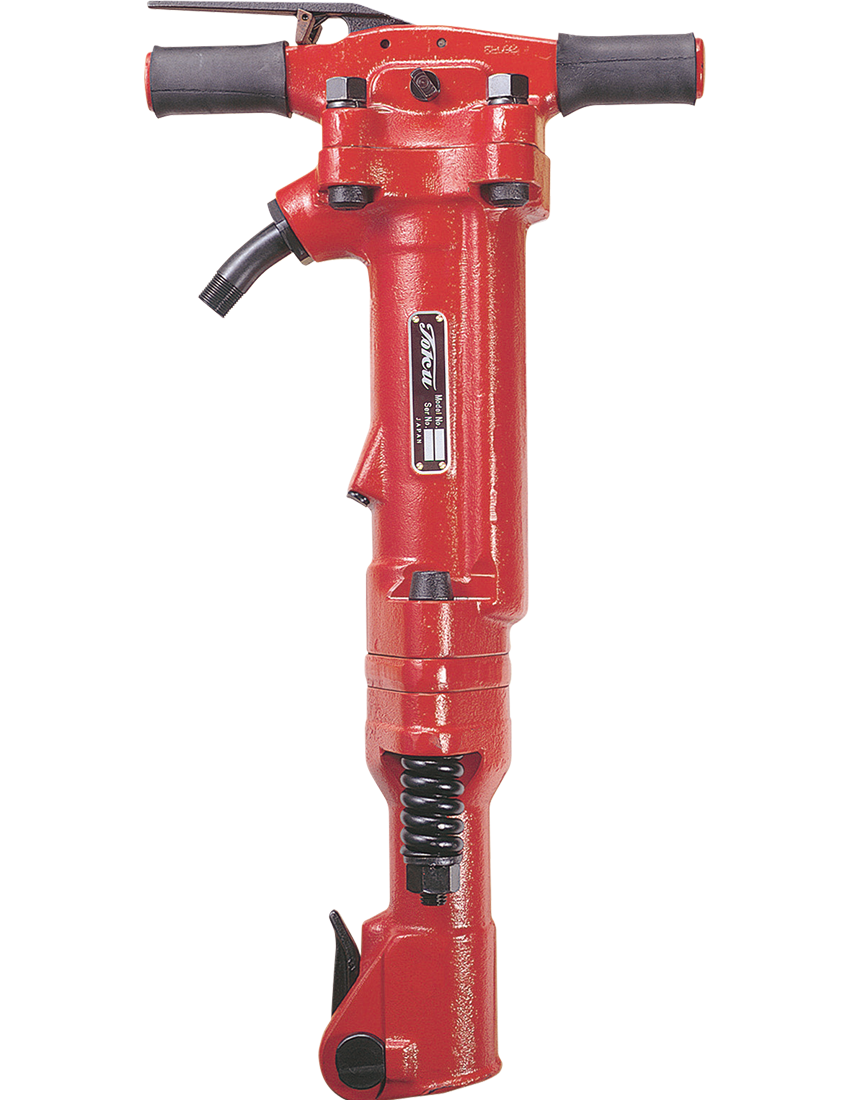

Toku TPB-90

TOKU TPB-90

Piston Diameter: 66.67 mm
Piston Stroke: 152 mm
Weight: 42 kg
Overall Length: 725 mm
Blow per min: 1250 bpm
Shank Hex Size: H 1 -0.125 x 6 inch; H 1 -0.250 x 6 inch
Air Consumption: 2.2 m³/min
Air Inlet: 0.75 NPT
Hose Size: 19 mm

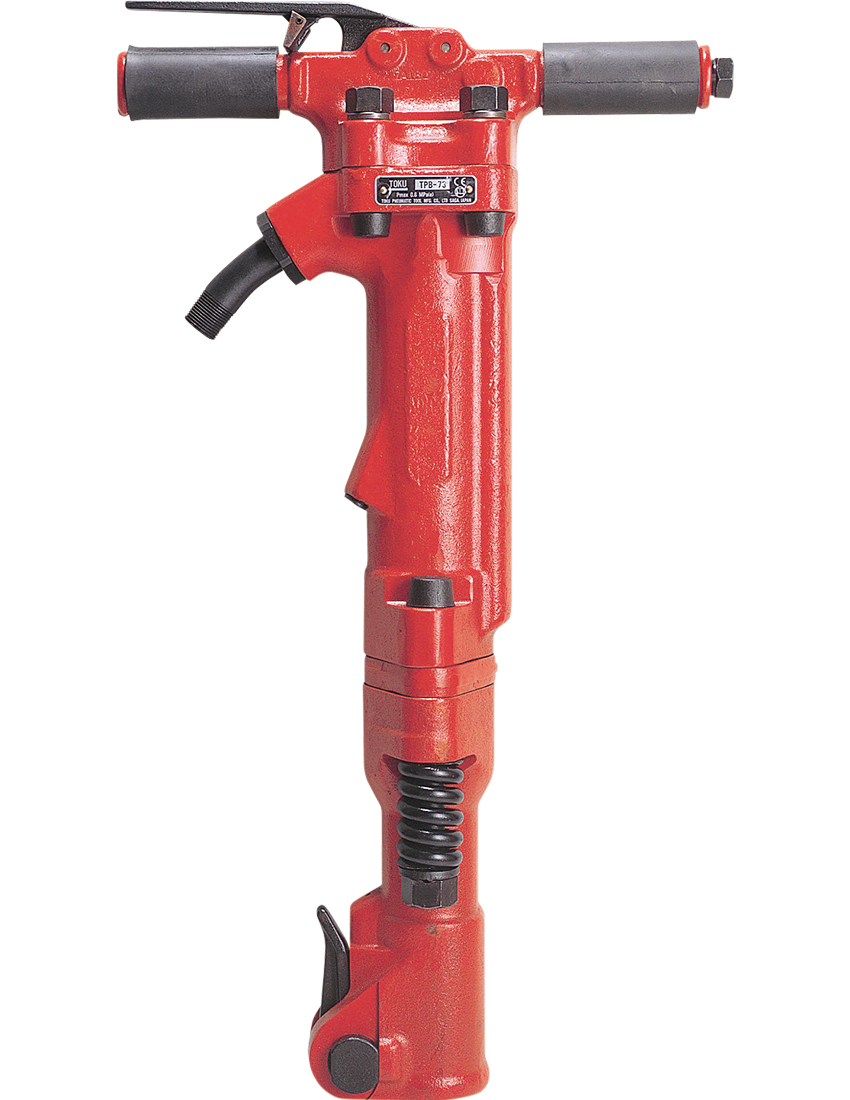

Toku TPB-73

TOKU TPB-73

Piston Diameter: 57.15 mm
Piston Stroke: 144 mm
Weight: 31 kg
Overall Length: 690 mm
Blow per min: 1200 bpm
Shank Hex Size: H 1 -0.125 x 6 inch; H 1 -0.250 x 6 inch
Air Consumption: 1.8 m³/min
Air Inlet: 0.75 NPT
Hose Size: 19 mm

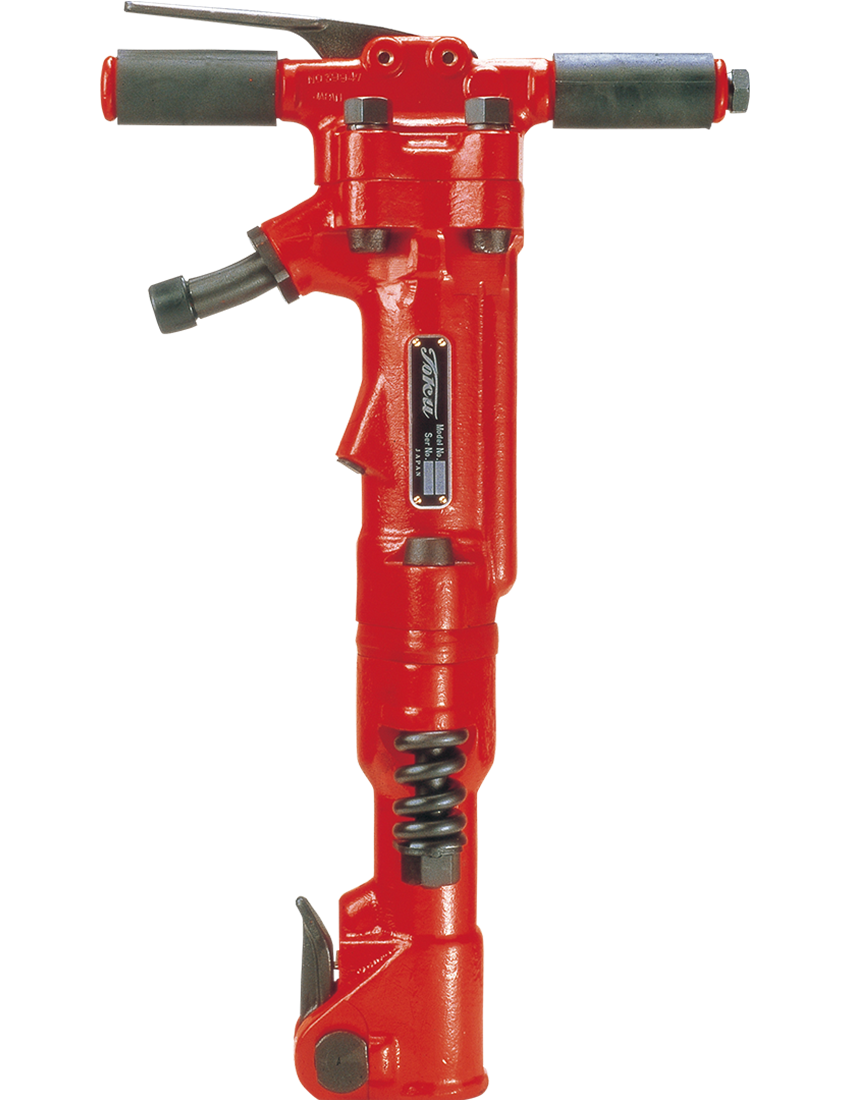

Toku TPB-60

TOKU TPB-60

Piston Diameter: 57.15 mm
Piston Stroke: 100 mm
Weight: 30 kg
Overall Length: 645 mm
Blow per min: 1400 bpm
Shank Hex Size: H 1 -0.125 x 6 inch; H 1 -0.250 x 6 inch
Air Consumption: 1.7 m³/min
Air Inlet: 0.75 NPT
Hose Size: 19 mm
