McWel Generator with Cummins Engine

McWel with Cummins Engine MGC48S

Rated Output: 30 kW / 37 kVA (50Hz)
39 kW / 48 kVA (60Hz)
Voltage: 400V / 440V, 200V / 220V
Engine Model: 4BT3.9-G1 Cummins
Fuel Consumption: 7 ℓ/h (75%)
4.6 ℓ/h (50%)
Fuel Tank Capacity: 93 ℓ
Dimension (L x W x H): 2140mm x 900mm x 1220mm
Operating Weight: 1120 kg

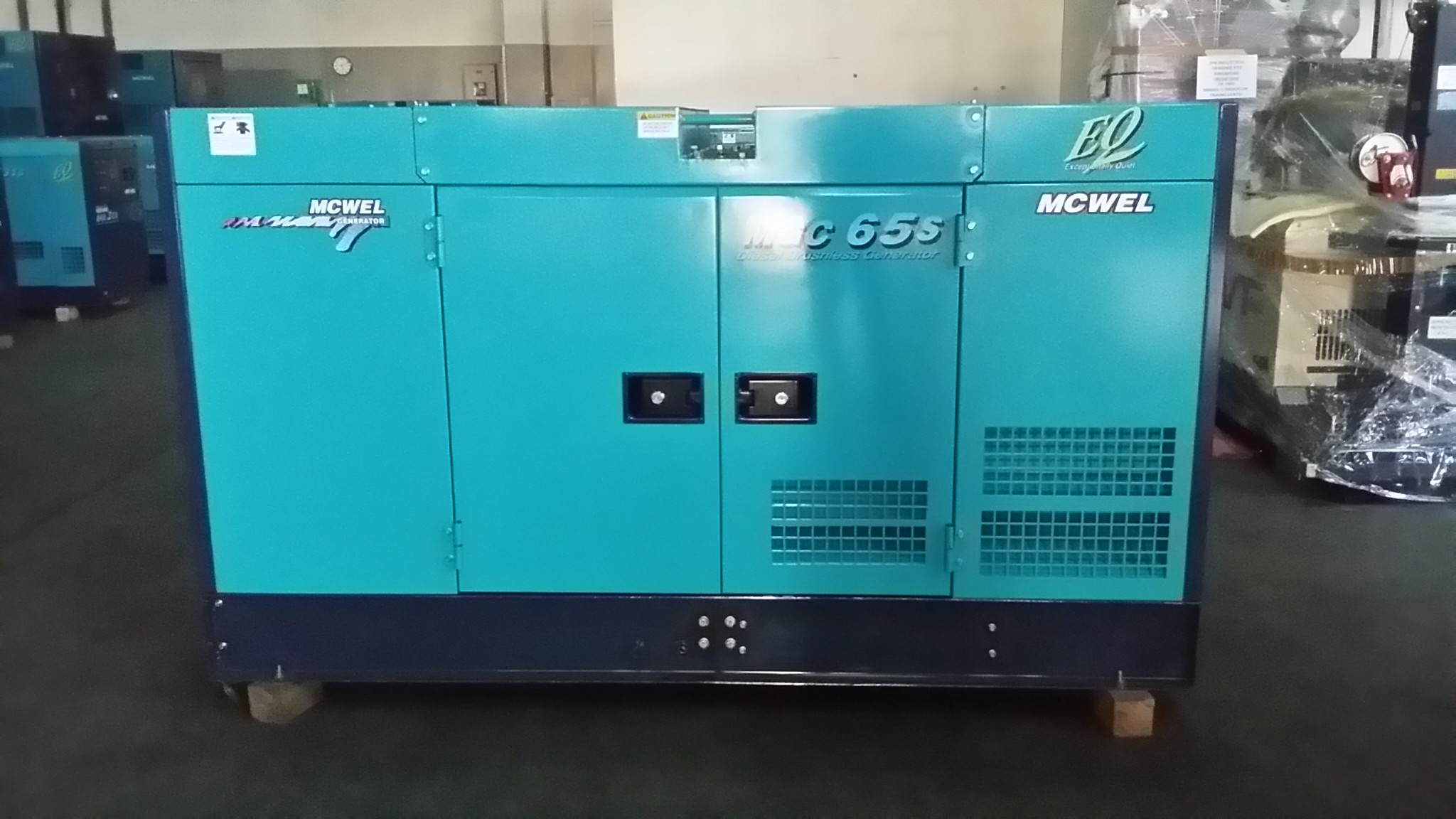

McWel with Cummins Engine MGC65S

Rated Output: 40 kW / 50 kVA (50Hz)
52 kW / 65 kVA (60Hz)
Voltage: 400V / 440V, 200V / 220V
Engine Model: 4BTA3.9-G2 Cummins
Fuel Consumption: 9 ℓ/h (75%)
6 ℓ/h (50%)
Fuel Tank Capacity: 93 ℓ
Dimension (L x W x H): 2140mm x 900mm x 1220mm
Operating Weight: 1200 kg

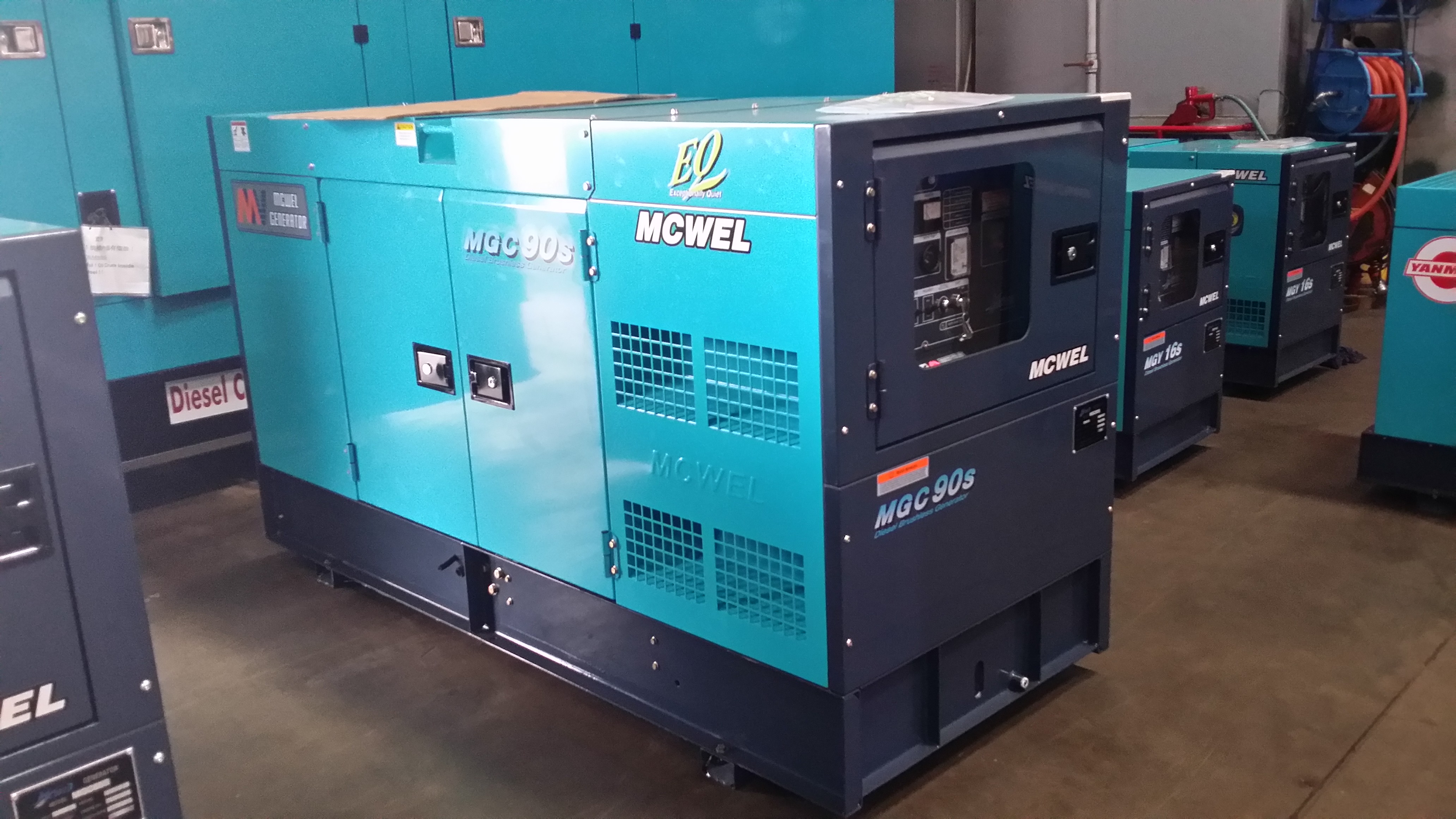

McWel with Cummins Engine MGC90S

Rated Output: 60 kW / 75 kVA (50Hz)
72 kW / 90 kVA (60Hz)
Voltage: 400V / 440V, 200V / 220V
Engine Model: 4BTA3.9-G11 Cummins
Fuel Consumption: 9.6 ℓ/h (75%)
6.4 ℓ/h (50%)
Fuel Tank Capacity: 170 ℓ
Dimension (L x W x H): 2340mm x 950mm x 1220mm
Operating Weight: 1350 kg

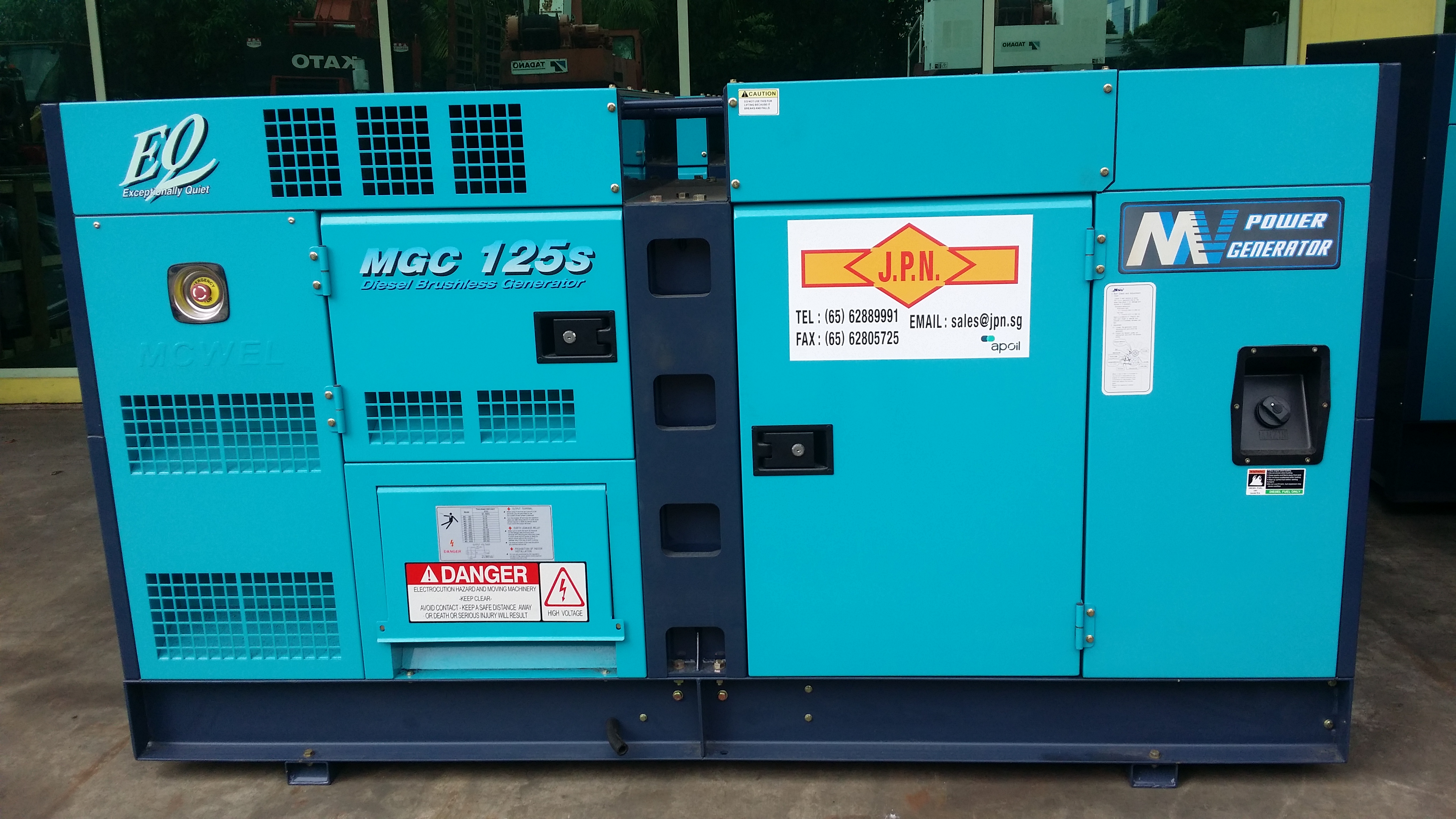

McWel with Cummins Engine MGC125S

Rated Output: 80 kW / 100 kVA (50Hz)
100 kW / 125 kVA (60Hz)
Voltage: 400V / 440V, 200V / 220V
Engine Model: 6BT5.9-G1 Cummins
Fuel Consumption: 15 ℓ/h (75%)
11 ℓ/h (50%)
Fuel Tank Capacity: 152 ℓ
Dimension (L x W x H): 2700mm x 980mm x 1470mm
Operating Weight: 1800 kg

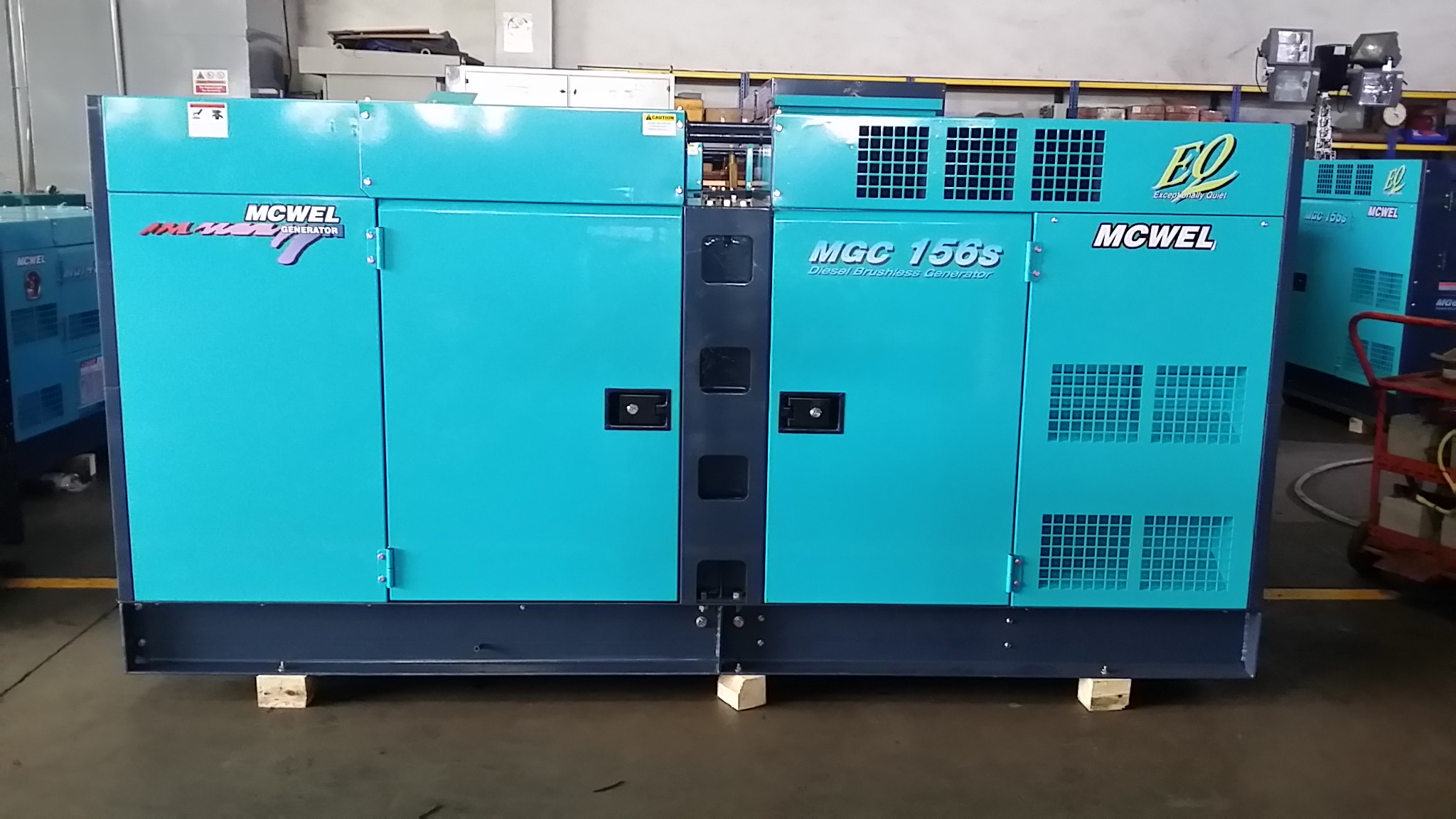

McWel with Cummins Engine MGC156S

Rated Output: 100 kW / 125 kVA (50Hz)
125 kW / 156 kVA (60Hz)
Voltage: 400V / 440V, 200V / 220V
Engine Model: 6BTAA5.9-G2 Cummins
Fuel Consumption: 18 ℓ/h (75%)
14 ℓ/h (50%)
Fuel Tank Capacity: 230 ℓ
Dimension (L x W x H): 3000mm x 1050mm x 1470mm
Operating Weight: 1900 kg

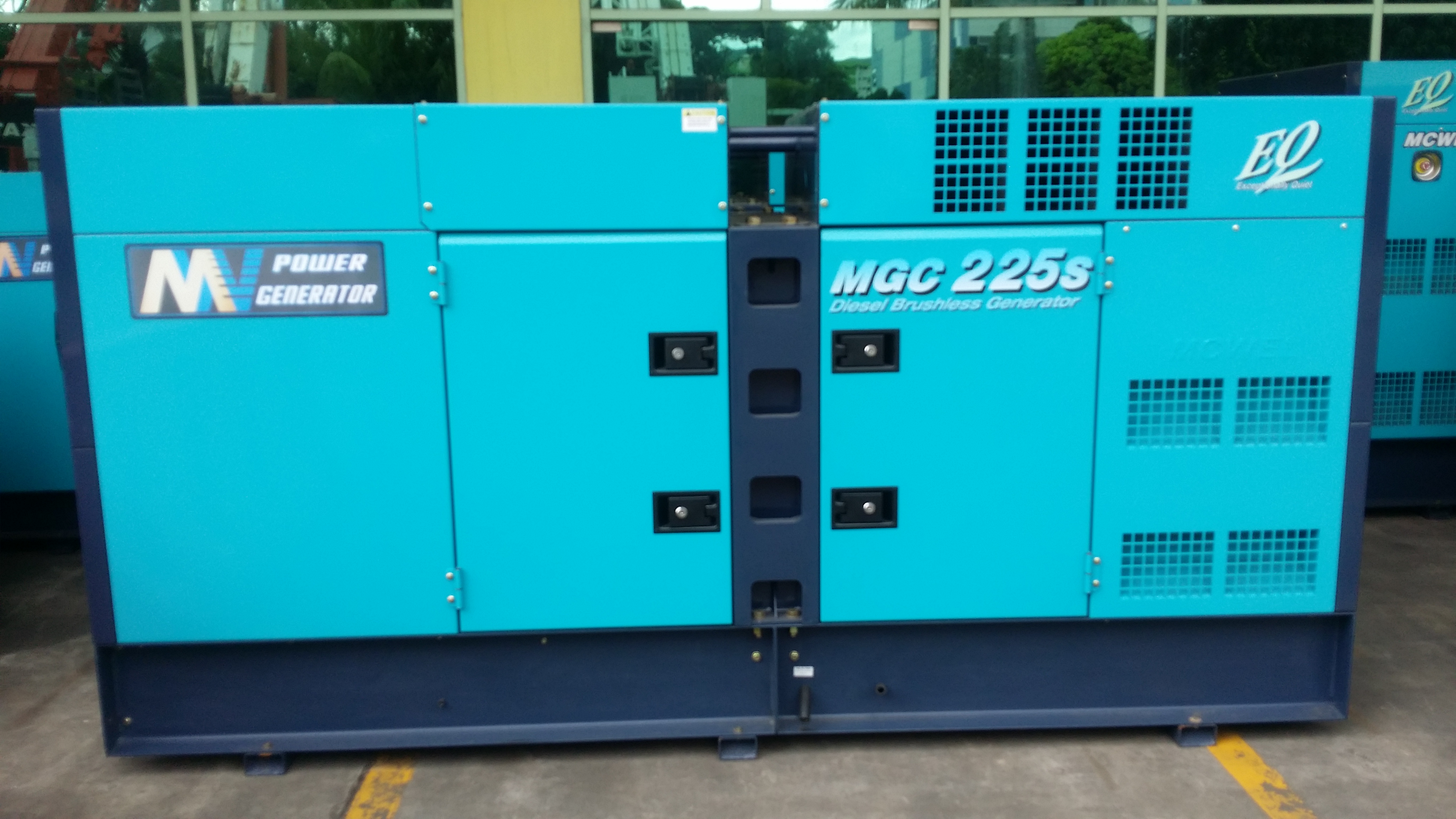

McWel with Cummins Engine MGC225S

Rated Output: 140 kW / 175 kVA (50Hz)
180 kW / 225 kVA (60Hz)
Voltage: 400V / 440V, 200V / 220V
Engine Model: 6CTA8.3-G2 Cummins
Fuel Consumption: 26 ℓ/h (75%)
19 ℓ/h (50%)
Fuel Tank Capacity: 270 ℓ
Dimension (L x W x H): 3200mm x 1100mm x 1600mm
Operating Weight: 2500 kg

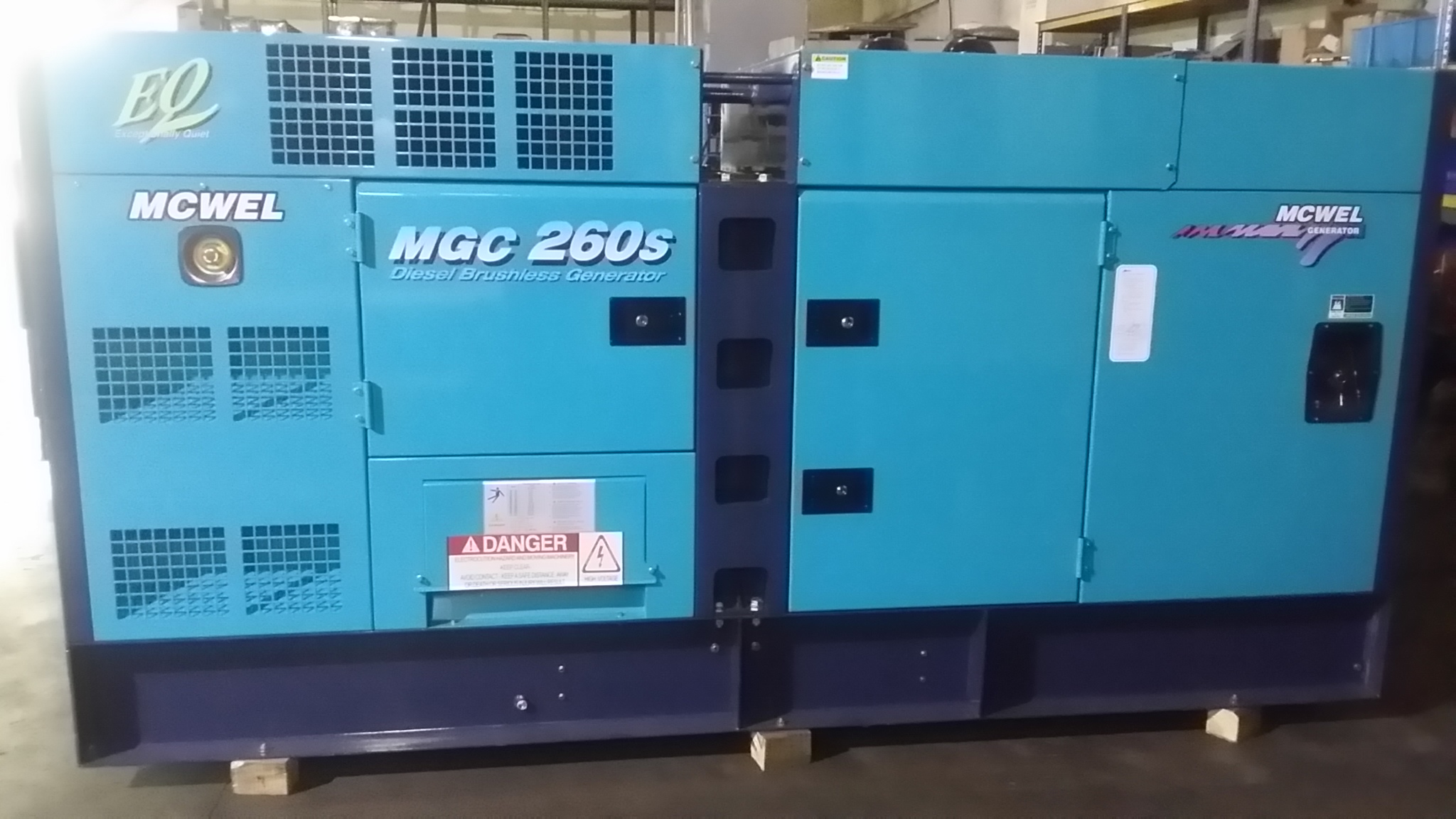

McWel with Cummins Engine MGC260S

Rated Output: 160 kW / 200 kVA (50Hz)
208 kW / 260 kVA (60Hz)
Voltage: 400V / 440V, 200V / 220V
Engine Model: 6CTAA8.3-G2 Cummins
Fuel Consumption: 30 ℓ/h (75%)
23 ℓ/h (50%)
Fuel Tank Capacity: 260 ℓ
Dimension (L x W x H): 3200mm x 1200mm x 1600mm
Operating Weight: 2700 kg

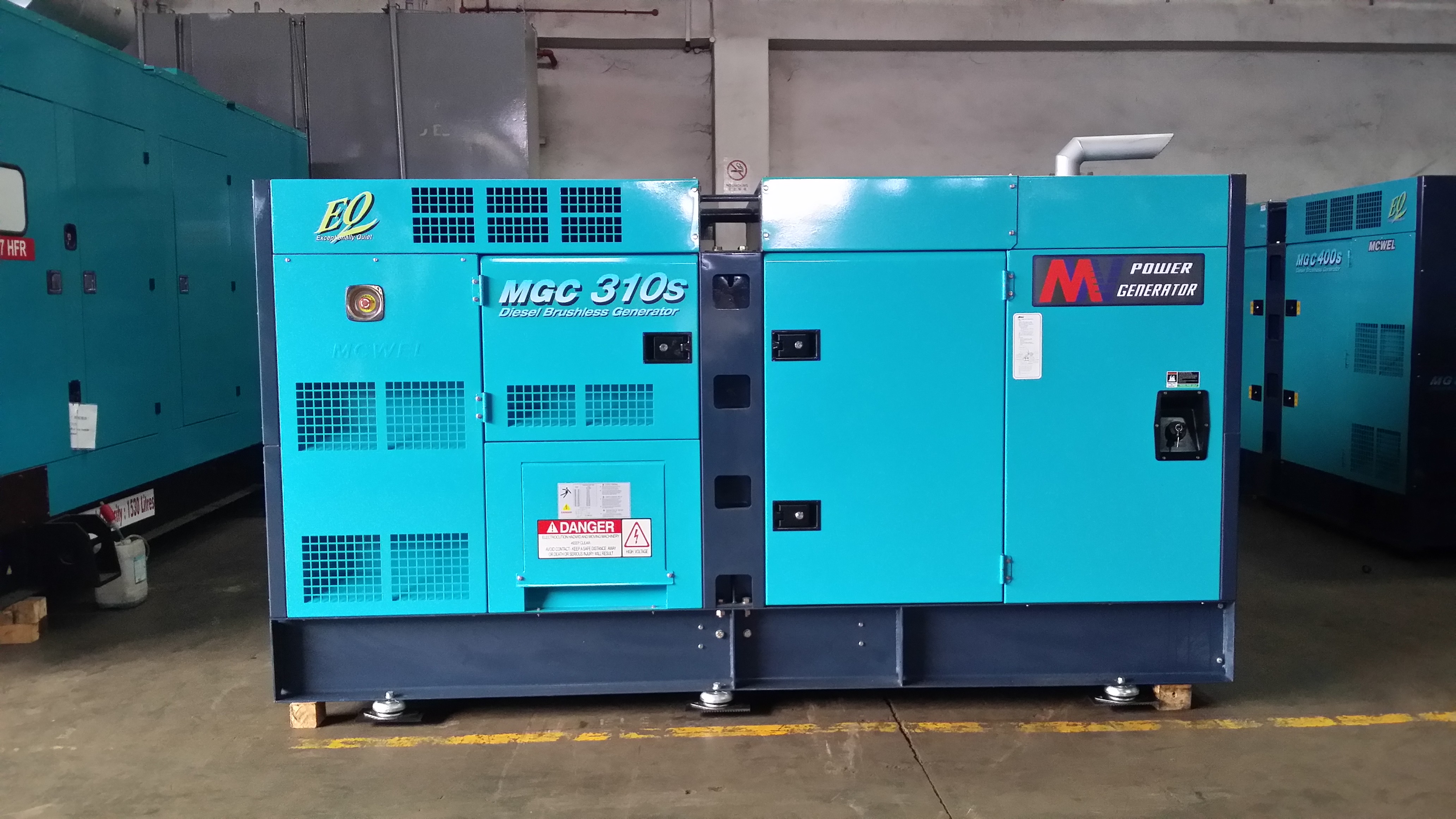

McWel with Cummins Engine MGC310S

Rated Output: 200 kW / 250 kVA (50Hz)
240 kW / 300 kVA (60Hz)
Voltage: 400V / 440V, 200V / 220V
Engine Model: 6LTAA8.9-G3 Cummins
Fuel Consumption: 35 ℓ/h (75%)
28 ℓ/h (50%)
Fuel Tank Capacity: 390 ℓ
Dimension (L x W x H): 3400mm x 1300mm x 1800mm
Operating Weight: 3600 kg

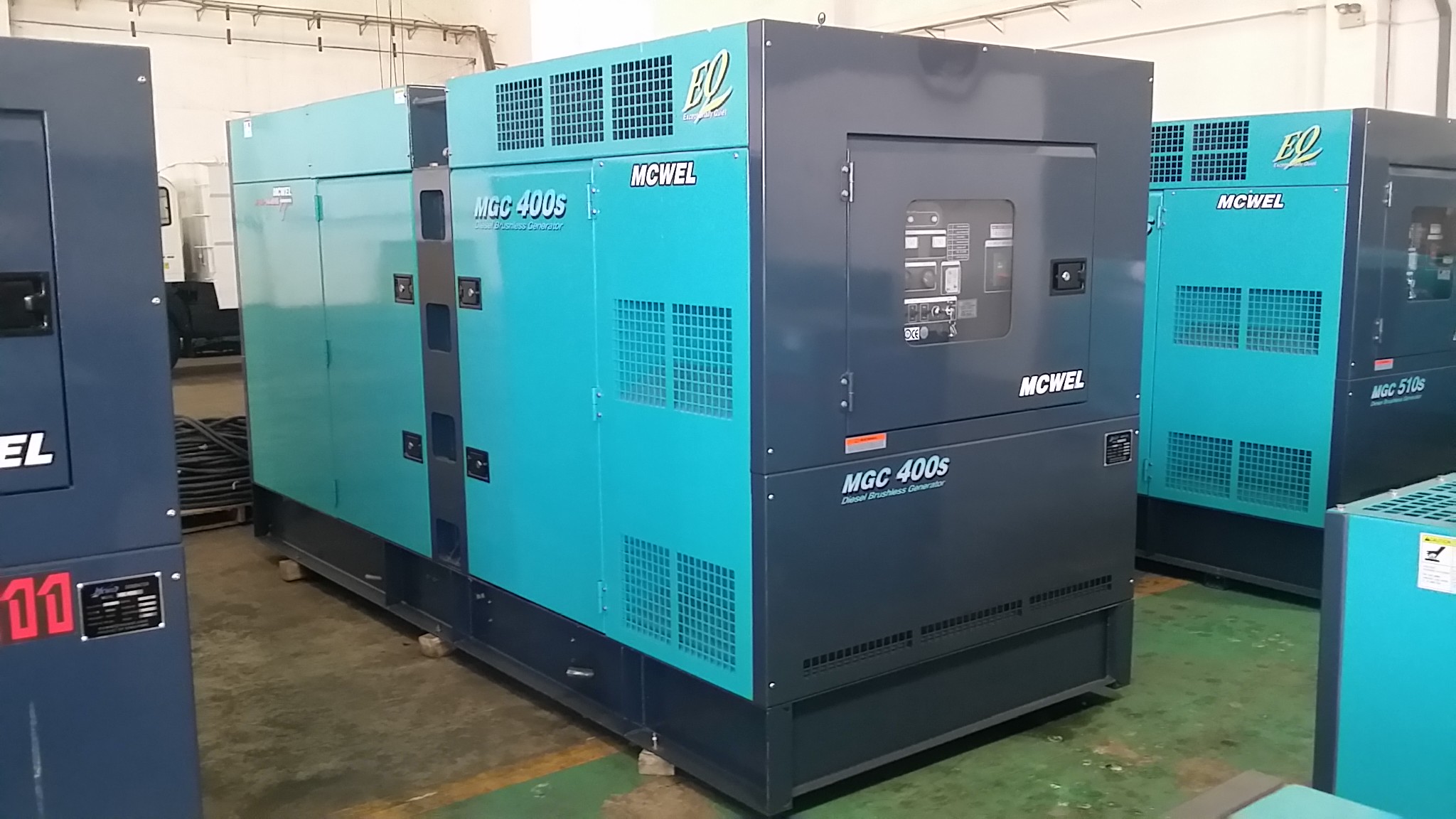

McWel with Cummins Engine MGC400S

Rated Output: 260 kW / 325 kVA (50Hz)
315 kW / 394 kVA (60Hz)
Voltage: 400V / 440V, 200V / 220V
Engine Model: QSM11-G2 Cummins
Fuel Consumption: 48 ℓ/h (75%)
33 ℓ/h (50%)
Fuel Tank Capacity: 543 ℓ
Dimension (L x W x H): 3900mm x 1300mm x 1850mm
Operating Weight: 3900 kg

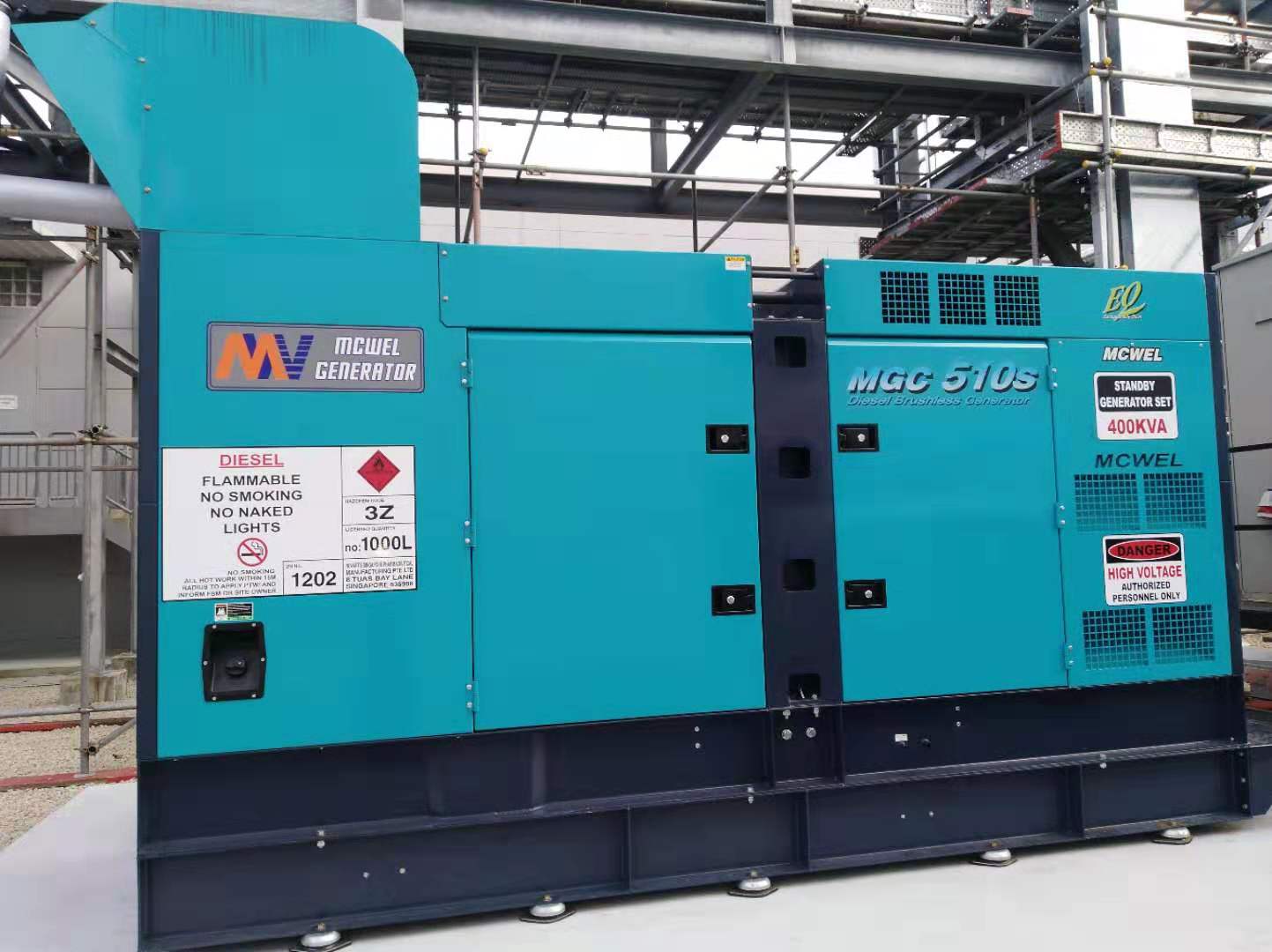

McWel with Cummins Engine MGC510S

Rated Output: 320 kW / 400 kVA (50Hz)
435 kW / 510 kVA (60Hz)
Voltage: 400V / 440V, 200V / 220V
Engine Model: 6ZTAA13-G2 Cummins
Fuel Consumption: 67 ℓ/h (75%)
47 ℓ/h (50%)
Fuel Tank Capacity: 800 ℓ
Dimension (L x W x H): 4150mm x 1700mm x 2150mm
Operating Weight: 4790 kg

McWel with Cummins Engine MGC600S

Rated Output: 400 kW / 500 kVA (50Hz)
480 kW / 550 kVA (60Hz)
Voltage: 400V / 440V, 200V / 220V
Engine Model: QSZ13A-G3 Cummins
Fuel Consumption: 74.2 ℓ/h (75%)
48.9 ℓ/h (50%)
Fuel Tank Capacity: 1000 ℓ
Dimension (L x W x H): 4150mm x 1700mm x 2150mm
Operating Weight: 6500 kg
